+32202

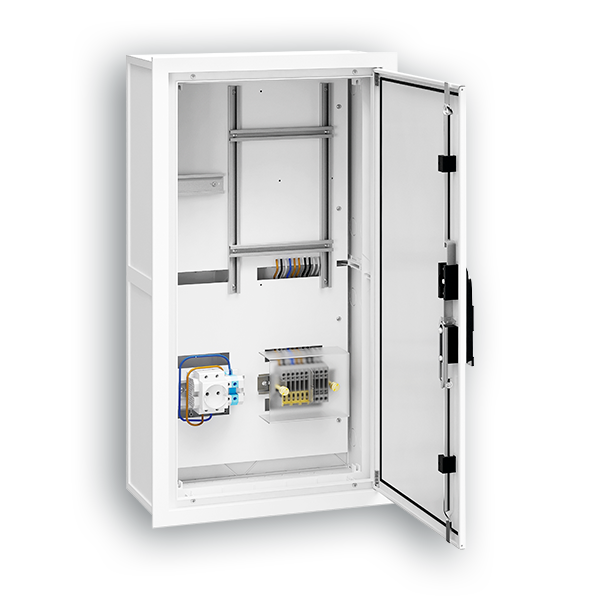

POWER METER CABINET 400x750x200 FM
- Dimensions WxHxD (mm): 400x750x200
- EAN: 5600307030479
- Application: Flush Mounted (FM)
- Color: White - RAL 9010
- Tariff Code: 85371099
- Gross Weight (Kg): 9.55
- Volume (m³): 0.082
- Observations:
Meter Cabinet for BTE - Type A - Class II Insulation, equipped with terminal block and schuko-type socket, with transparent polycarbonate cover and aluminium frame and door.
Includes retractable sealable lock, supplied with EDP4 cylinder and key.
In accordance with DMA-C62-701.
Materials
- Enclosure: Plastic - PSHI
- Door: Chapa zincor lacada a branco
- Mounting Plate: Chapa zincor lacada a branco
Protection and Security
- Insulation Class: Class II Insulation
- IP Protection Degree: 55
- IK Protection Degree: 10
- GWT: 850°C
- Static Load: 200kg/m³
- Installation Temperature: Mín: -25ºC Máx: 40ºC
Electrical Features
- Ue: 230V/400V~
- Ui: 500V
- degree of pollution: 3
- Pde – 30K: 61
- Frequency: 50Hz
- Icc (kA): 10kA
Standardizing Documentation
- Standards: EN IEC 61439-2
- Directive: 2014/35/UE
- Regulations: RTIEBT
- : DMA-C62-701
EU Declaration of Conformity - Special LV Power Meter Cabinets
